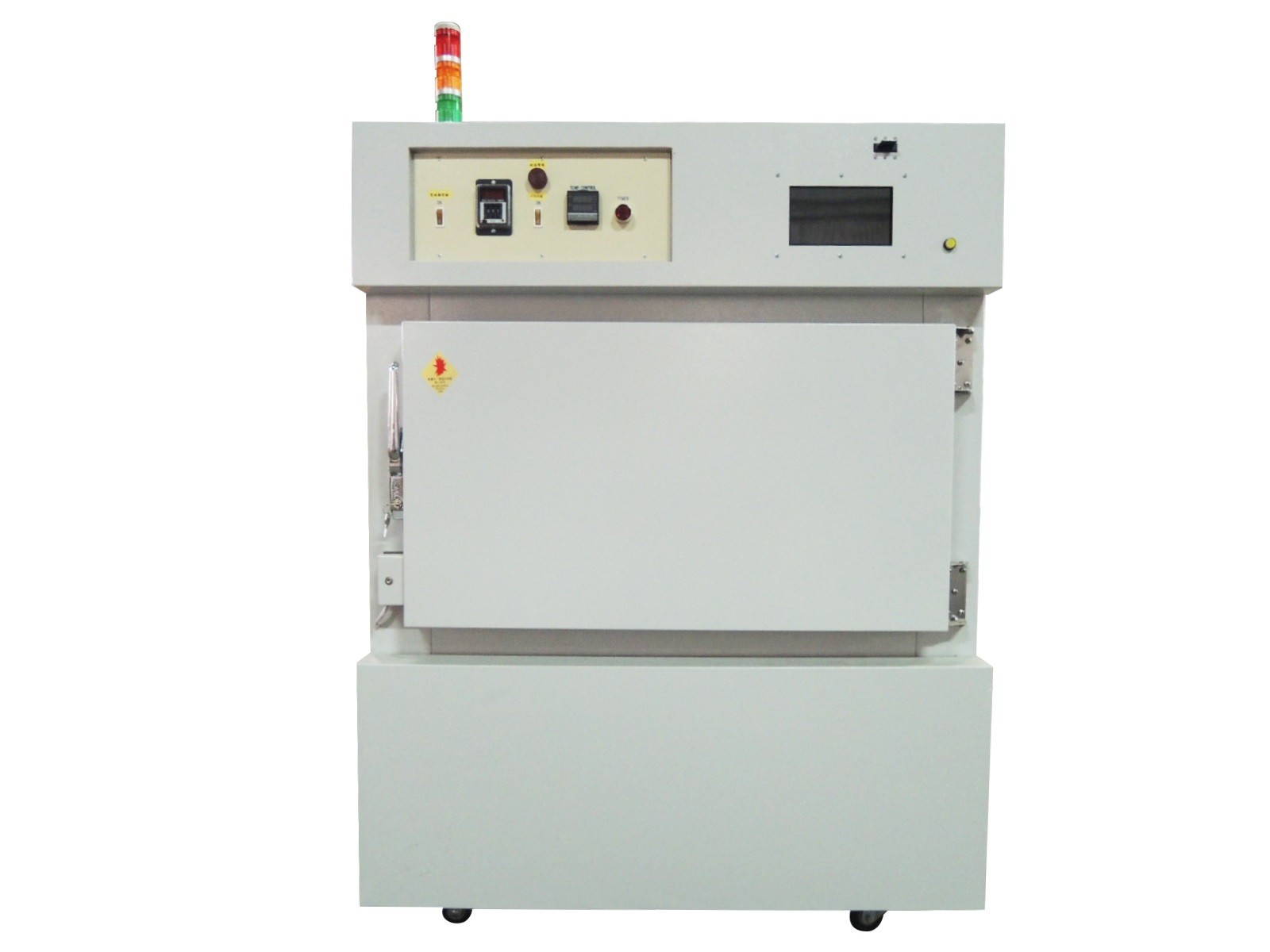

This product is designed for customized high wattage laser components, including small batch Burn-In testing, providing LD current and monitoring; in addition, this product is equipped with a well-equalized homeothermy oven, which can operate in the temperature range from room temperature +25°C to 100°C, accompanied by an over-temperature alarm, which triggers an audible alarm when the temperature exceeds a certain threshold. The exhaust vent is located on the top of the machine to prevent hot air from blowing directly to the operator. This product can be utilized in mass production of VCSEL TO for aging test and screening out defective products during the production process to ensure the yield of shipped products.

LD current source: 0~1A/0~2A/0~5A or customization

PD voltage source: -5~+5V, and monitor PD current 0~10mA

Temperature range: Room temperature + 25 °C ~ 100 °C, (without load)

Note: This model is not equipped with cooling function, excessive aggregate power of the object to be tested will result in high temperature

Temperature control accuracy: ± 3 °C (without load)

The performance of the above # 2 - 3 guarantees require temperature measurement after 30 minutes of stabilization of temperature measurement! Temperature distribution uniformity (Homeothermy): ±1.5%.

Note: The performance guarantee of #4 above should be measured at 1/6 position from each wall of the test area and measured after 30 minutes of temperature stabilization!

Case size: 120 x 150 x 120 cm (W x H x D).

Power supply: Oven AC 1 ∮, 220 V, 60 HZ, MAX 20A .

Control circuit: AC 1 ∮, 220 V, 60 HZ, MAX 20A
